[SatNews] Leader Instruments has selected IBC2013, Amsterdam, for the European launch of its dual-award-winning LV5490 SD to 4K multi-standard multi-waveform monitor.
“High quality 4K cameras are becoming so affordable that the format is being adopted by many digital cinematographers and video production companies,” said George Gonos, President of Leader Instruments Corporation. “Our new LV5490, previewed at NAB and expected to be deliverable during Q4, is the ideal production reference both for 4K live shooting and post-shoot refining. It also handles all common high-definition and standard-definition signal formats in one compact and affordable instrument. We have built in many of the features that have made our SD and HD instruments easy for use by creatives working intuitively. The LV5490 is also a great tool for engineers.”

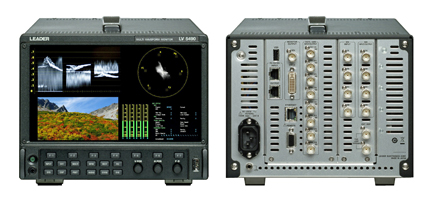

Leader’s LV5490 waveform monitor supports the full range of standard video production and transmission resolutions from 525 and 625 standard definition up to 3840 x 2160 and 4096 x 2160 4K. Equipped with four 3G-SDI/HD-SDI/SD-SDI input channels plus a high-quality wide-viewing-angle 1920 x 1080 9 inch flat-panel display, it allows precise matching of studio or outside-broadcast cameras. The instrument also doubles as a picture monitor for production crews working on location.
Each of the four inputs includes Leader’s unique cable length measurement capability. 3G-SDI dual link and quad link are both supported. Rear panel connectivity includes SDI and DVI raster outputs, Ethernet, RS-422 serial control, eight digital audio inputs/outputs, eight SDI inputs/outputs, external reference and 75 ohm loop-through, 90 to 250 volt 50/60 hertz mains power input and ground.
4K images can be divided into upper left, upper right, lower left and lower right areas and output via as four-wire or two-wire 3G-SDI channels. The LV5490 can also downconvert 4K into an interleave-sampled 1920 x 1080 pixel monitor feed.
The LV5490 can be used in a very wide selection of test and measurement roles. These include waveform, vector and picture monitoring, SDI signal data analysis, cyclic-redundancy-check error, embedded-audio error, event log, data dump and timing display. Leader’s CINELITE® II toolset also comes as a standard feature, allowing easy assessment of relative exposure and overall luminance.
Waveform, vector and picture display can be viewed simultaneously on the LV5490 screen. Simultaneous display and overlay display of multiple SDI inputs is possible. Size and location of individual channel displays can be adjusted using a USB-connected pointing device.
Additional features of the LV5490 include video frame capture, instrumentation screen capture, timecode display, tally light and ID display. Eye pattern display, jitter waveform display and Dolby decoding can be ordered as optional facilities. A rack mounting adapter will also be available.
Leader’s S-LOG2 option enables digital cinematographers to make the fullest use of the Sony F65 camera’s 4K imager, extended chroma gamut and 16-bit linear dynamic range. It gives creatives immediate visual information such a precise zoom-in monitoring of focus across user-selected areas of a video source. Exposure detail can be checked accurately at the press of a button. A high-key filter can be activated to evaluate highlight detail and then a low-key filter to inspect shadow detail quickly and repeatably. Users can also apply a user-adjustable exposure/luminance-referenced chroma scale over the image, allowing them to match the White Clip indication on a Sony F65, False Colour on an ARRI Alexa or Video Check on a RED Epic.
Optional digital audio monitoring and analysis tools include 4 x 4 channels of SDI audio de-embedding, lissajous display, surround sound display and volumetric display. Up to 16 channels of de-embedded SDI audio can be output as discrete AES3 feeds.
The LV5490 occupies a robust and easily transportable half-U width by 4U high housing with a carrying handle. Weight is approximately 4.7 kilograms.
Leader will be represented on stand 11.A38 by Richard Heath from Leader Europe and USA-based colleagues from Leader Instruments Corporation.
