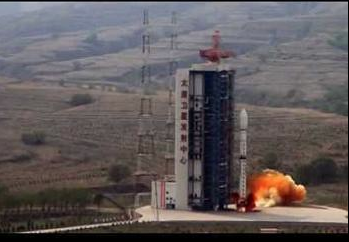

In what was one of the most secretive Chinese missions in recent years, a Long March 4C launched three military satellites. The launch, which occurred at 23:37 UTC from the Taiyuan Satellite Launch Center on Friday, was the subject of a state media blackout, with news leaking via social media just hours before lift-off.
Chinese media refer to the new mission as launching three technological satellites: namely the Chuang Xin-3, the Shiyan Weixing-7 and the Shijian-15.
The first Chung Xin (‘Innovation’) sats were experimental telecommunications microsatellites designed and built by the China Academy of Sciences.
Shiyan Weixing satellites are usually used to test new technologies as well as the Shijian (‘Practice’) satellites used for technological demonstration. Shijian-15 probably will test a Chinese robotic arm, a mission that has been planned and announced for some time, while Shiyan-7 will scan for orbital debris.
This was the 179th successful launch of a Chang Zheng (Long March) launch vehicle, the 42nd successful orbital launch from Taiyuan and the first from Taiyuan this year. It was also the fifth successful orbital Chinese launch in 2013. Launch Vehicle and Launch Site:’
With its main commonality matched to the Long March 4B, the first stage has a 24.65 meter length with a 3.35 meter diameter, consuming 183,340 kg of N2O4/UDMH (gross mass of first stage is 193.330 kg).
The vehicle is equipped with a YF-21B engine capable of a ground thrust of 2,971 kN and a ground specific impulse of 2,550 Ns/kg. The second stage has a 10.40 meter length with a 3.35 meter diameter with an overall mass of 38,326kg, consuming 35,374 kg of N2O4/UDMH.
It includes a YF-22B main engine capable of a vacuum thrust of 742 kN and four YF-23B vernier engines with a vacuum thrust of 47.1 kN (specific impulses of 2,922 Ns/kg and 2,834 Ns/kg, respectively).
The third stage has a 4.93 meter length with a 2.9 meter diameter, consuming 12,814 kg of N2O4/UDMH. Having a gross mass of 14,560 kg, it is equipped with a YF-40 engine capable of a vacuum thrust of 100.8 kN and a specific impulse in vacuum of 2,971 Ns/kg.
Situated in the Kelan County on the northwest part of the Shanxi Province, the Taiyuan Satellite Launch Center (TSLC) is also known by the Wuzhai designation. It is used mainly for polar launches (meteorological, Earth resources and scientific satellites).
The center is at an altitude of 1400-1900m above sea level, and is surrounded by mountains to the east, south and north, with the Yellow River to its west. The annual average temperature is 4-10 degrees C, with maximum of 28 degrees C in summer and minimum of -39 degrees C in winter.
TSLC is suitable for launching a range of satellites, especially for low Earth and sun-synchronous orbit missions. The center has state-of-the-art facilities for launch vehicle and spacecraft testing, preparation, launch and in-flight tracking and safety control, as well as for orbit predictions. (Images via Chinanews.cn).
