you can observe these products at EMC 2013 in Denver, Colorado from August 5-9, at Booth 216. MITEQ Desktop Products and Fiber Optic Links are ready for EMC Compliance Testing Applications providing complete frequency coverage from 1 MHz to 40 GHz. MITEQ offers a wide array of products that can aid in the EMI testing required by Commercial, Medical, Automotive and Military customers. Low Noise Amplifiers to 40 GHz for emissions testing, and block converters extending frequency coverage of test instruments up to 40 GHz. Analog Fiber optic links are available for EMI immune signal transmission.

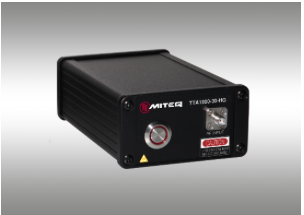

MITEQ’s new TTA Series are high performance Broadband Low Noise Amplifiers were specially developed for Electromagnetic (EMC) compliance testing. Complete frequency coverage from 1 MHz to 40 GHz is possible with three separate TTA amplifiers. They are enclosed in a small [5.1″ L x 3.5″ W x 1.9″ H] lightweight EMI/RFI case and can be used easily in the EMC test setup … read more here.
Extend Frequency Coverage of existing receivers, low-noise block converters with RF coverage of 18-40 GHz convert to IF frequencies into the range of your existing equipment.
These wide RF/IF bandwidth frequency converters, with fixed LO frequencies (block converters), are commonly used to process millimeter wave signals with less expensive receivers below 18 GHz. The LNB series, with its 4 dB noise figure permits operation at low input signal powers. In addition, the PM noise of the converter is minimized by a phase-locked and multiplied internal LO source…read more here.
Analog Fiber Optic Links Provide EMI Immunity MITEQ’s fiber optic links offer a high dynamic range[>100dB] for transmission of low level signals over a long distances without interference.
MITEQ’s LNBF-2440-05 Low-Noise Block Converter offers a very wide instantaneous bandwidth of 16 GHz. The LNBF unit incorporates a fixed frequency 42 GHz Phase Locked Local Oscillator and Low Phase-Noise OCXO. Reference Oscillator to convert the full 24 to 40 GHz RF-band down to a 2 to 18 GHz IF-band. The unit also includes a 16 GHz instantaneous bandwidth fiber optic transmitter. The LNBF information is available here.
