NASA… MCDR Is Now A Successful Footnote For Webb


Artist conception of the James Webb Space Telescope, courtesy of NASA
NASA’s James Webb Space Telescope has passed its most significant mission milestone to date, the Mission Critical Design Review, or MCDR. This signifies the integrated observatory will meet all science and engineering requirements for its mission.

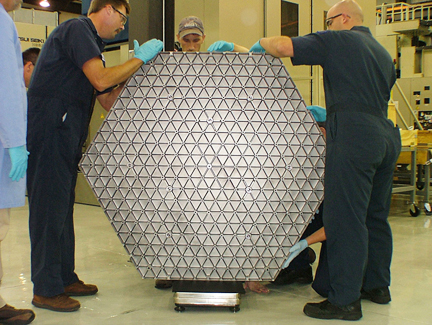

One of the primary mirror segment blanks. This image shows the back of the mirror blank, which is carved out in this pattern to make the mirror segment light, yet maintain its integrity. Photo credit: AXSYS
NASA‘s Goddard Space Flight Center, in Greenbelt, Maryland, manages the mission. Northrop Grumman, Redondo Beach, California, is leading the design and development effort.


A team of engineers and technicians from NASA and Ball Aerospace & Technologies Corp. of Boulder, Colorado, prepare to load three James Webb Space Telescope mirror segments into a test chamber in the X-ray & Cryogenic Facility at NASA’s Marshall Space Flight Center in Huntsville, Alabama. There, they will subject the segments to temperatures reaching minus 414 degrees Fahrenheit — ensuring the mirror segments can withstand the extreme temperatures of space. The Webb Space Telescope is scheduled to launch to space in 2014 to study the formation of the universe and the evolution of our solar system. Photo credit: NASA/MSFC
The MCDR encompassed all previous design reviews including the Integrated Science Instrument Module review in March 2009; the Optical Telescope Element review completed in October 2009; and the Sunshield review completed in January 2010. The project schedule will undergo a review during the next few months. The spacecraft design, which passed a preliminary review in 2009, will continue toward final approval next year. The review also brought together multiple modeling and analysis tools. As the observatory is too large for validation by actual testing, complex models of how it will behave during launch and in space environments are being integrated. The models are compared with prior test and review results from the observatory’s components.

Although the MCDR approved the telescope design and gave the official go-ahead for manufacturing, hardware development on the mirror segments has been in progress for several years. Eighteen primary mirror segments are in the process of being polished and tested by Ball Aerospace & Technologies Corp. in Boulder, Colorado. Manufacturing on the backplane, the structure that supports the mirror segments, is well underway at Alliant Techsystems, or ATK, in Magna, Utah. This month, ITT Corp. in Rochester, New York, demonstrated robotic mirror installation equipment designed to position segments on the backplane. The segments’ position will be fine-tuned to tolerances of a fraction of the width of a human hair. The telescope’s sunshield moved into its fabrication and testing phase earlier this year.

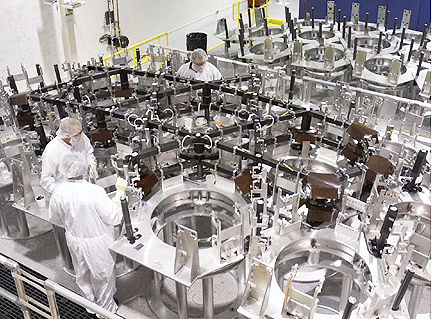

The Pathfinder Composite Backplane for the Primary Mirror Segments being bonded at ATK. In the background is the flight backplane assembly structure. Photo courtesy of ATK.
The three major elements of Webb will proceed through hardware production, assembly and testing prior to delivery for observatory integration and testing scheduled to begin in 2012. The Webb is the premier nexgen space observatory for exploring deep space phenomena from distant galaxies to nearby planets and stars. The telescope will provide clues about the formation of the universe and the evolution of our own solar system. The telescope is a joint project of NASA, the European Space Agency, and the Canadian Space Agency.
