On April 10, 2013, it also produced the largest, non-volcanic landslide on the historical record in North America when an estimated 65-70 million cubic meters of dirt and rock thundered down the northeastern side of the pit. The event was large enough that seismic networks designed to monitor for earthquakes detected the rumble of sliding debris. The event—known as a rock avalanche by geologists because of its size and how rapidly the debris slid—was larger than both Canada’s Mount Steele slide in 2007 and Alaska’s Mount Stellar slide in 2005. Both had volumes of about 50 million cubic meters.
Despite the size of the Bingham Canyon slide, much larger events have occurred because of volcanic eruptions and on other continents. When Mount St. Helens erupted in 1980, between 2.9 and 3.7 billion cubic meters of its flank collapsed. Following the Wenchuan earthquake in 2008, the Daguangboa landslide in China put more than 1 billion cubic meters of material in motion. And long before humans were around to witness it, an extraordinary 3,400 billion cubic meter event transformed Wyoming’s Heart Mountain. That event, which occurred some 40 million years ago, is thought to be the largest landslide on Earth.

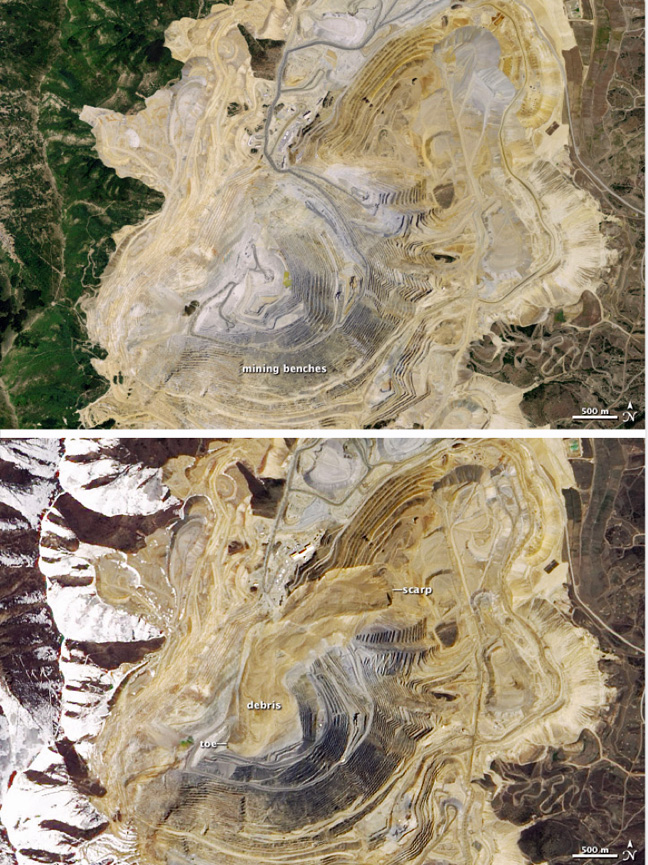

The Advanced Land Imager (ALI) on NASA’s Earth Observing-1 (EO-1) acquired this view (bottom) of Bingham Canyon Mine on May 2, 2013, three weeks after the event. For comparison, an aerial photograph (top) shows what the mine looked like on July 20, 2011. A scallop-shaped scarp—a cliff-like layer of exposed soil—is visible near the beginning of the slide. The trail of debris stretches about 2.5 kilometers from crest to toe. The slide obliterated or covered numerous terrace-like mining benches along the northeastern side of the pit. Rubble from the slide also damaged a number of hauling trucks that were parked near the debris toe, as well as a hauling road that runs to the bottom of the pit.
NASA Earth Observatory image by Jesse Allen and Robert Simmon, using EO-1 ALI data from the NASA EO-1 team. The 2011 aerial photograph is from the National Agriculture Imagery Program. Caption by Adam Voiland, with information from Jeffrey Moore (University of Utah).
While the large size of the slide was unexpected, that it happened when it did was not. The company that operates the mine had installed an interferometric radar system months before the event that made it possible to detect subtle changes in the stability of the pit’s walls. Signs of increasing strain prompted the mine’s operators to put out a press release seven hours before the collapse warning that a landslide was imminent. All workers were evacuated and production had stopped before the landslide occurred; as a result, nobody was injured.
“The main lesson to be learned is that large rock slope failures like this are not unpredictable ‘acts of god.’ They typically show many precursory warning signs and with the right monitoring system and proactive approach, the time of failure can be forecasted with reasonable accuracy,” noted University of Utah geologist Jeffrey Moore in an email. “This is a real success for the mine and a lesson to others in the community.”
