[SatNews] Harris Broadcast raised the bar it previously set for multi-format signal routing with the…
…introduction of the Platinum™ IP3 router—the broadcast industry’s first router to accommodate separate video, audio and data paths within the same frame. The Platinum IP3 is also the first signal router that can scale to multi-frame configurations for very large broadcast and media operations using a common architecture, simplifying installations and eliminating costs associated with external components and complex cabling. The intelligent architecture maximizes on-air security, with a pioneering approach to audio, video and multiviewer signal protection based on redundant crosspoints and integrated routing designs.

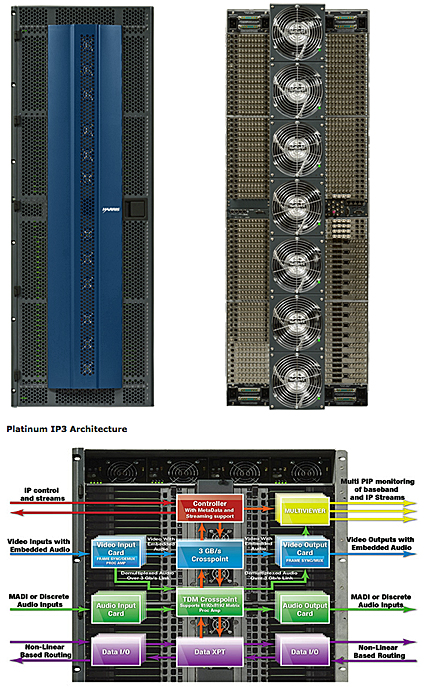

The industry’s first “triple-path” architecture for signal routing is a true innovation, and marks an evolution of the proven technology within Harris Broadcast’s Platinum routers—the first to offer a “dual-path” architecture for separate video and audio paths. The groundbreaking triple-path architecture of the Platinum IP3 retains the ability to cleanly separate video and audio signals while becoming the first broadcast router to offer a true path to network convergence. The Platinum IP3 delivers high-quality, multi-format signal routing up to 576×1024 in a single 28RU frame. It can scale to at least 2048×2048 in multi-frame configurations without external distribution amplifiers or combiners, reducing costs and labor. The design eliminates the need to take stations off the air while scaling into multiple frame systems — another industry first.
As with other Platinum routers, the Platinum IP3 accommodates multiviewers, frame synchronizers, advanced I/O options and audio mux/demux capabilities within the frame for a space- and energy-saving integrated solution. The ability to customize router size, and the integration of multiviewers and other systems, make the Platinum IP3 ideal for traditional broadcast plants as well as mobile production trucks, houses of worship, cable/IPTV facilities and large satellite TV operations among other end users. Systems integrators also benefit from a solution that is easy to configure and customize based on end user requirements. A highly intuitive controller supports effortless setup and simplifies communications management between the router and other connected components.
The Platinum IP3, now shipping worldwide, will make its debut at the CABSAT 2013 show in Dubai, United Arab Emirates (Dubai World Trade Center, March 12-14, Hall 7, Stand C7-10), with its North American debut scheduled for the 2013 NAB Show this spring (Las Vegas Convention Center, April 8-11, Booth N2503).
