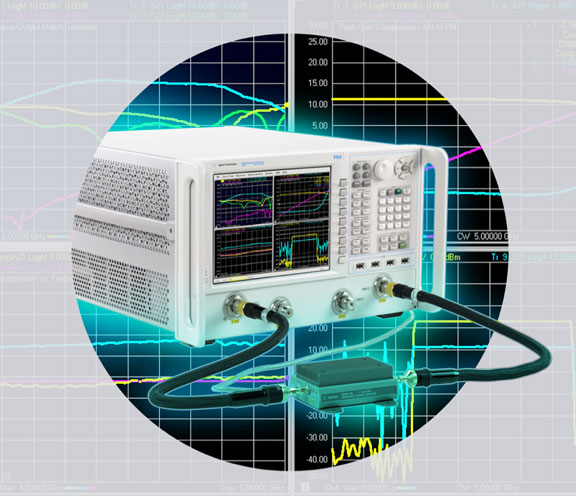

Agilent Technologies Inc. (NYSE: A) has introduced five new PNA microwave vector network analyzer models, up to 67 GHz. The new PNA Series is based on Agilent’s PNA-X architecture and is the world’s highest performing microwave network analyzer. The Agilent PNA is used to test a wide variety of passive and active devices such as filters, duplexers, amplifiers and frequency converters. The high-performance characteristics of the PNA make it an ideal solution for these types of component characterizations as well as millimeter-wave, signal integrity and materials measurements. The PNAs are available with:
  • Two-port internal single-source or four-port internal dual-source configuration in five frequency models: 13.5, 26.5, 43.5, 50 and 67 GHz
  • The highest source output power: +11 dBm at 67 GHz ( N5227A 67 GHz model)
  • 0.1 dB receiver compression point higher than +10 dBm (all models)
    •
The PNA Series provides high-power sources and the best linear receivers, giving it the most accurate S-parameter measurements with the widest power range in the market. This outstanding performance helps engineers increase yields with less guard band and provides the best data correlation between design verifications and production tests, making the new PNA Series the most dependable tool in microwave network analysis. The PNA Series now offers the majority of advanced measurement options currently available on the PNA-X Series and includes noise figure measurements, gain compression, two-tone IMD/spectrum analysis, true-mode stimulus, source phase control and fast CW mode. In the design and production of passive and active devices, these advanced applications improve accuracy and productivity for high-performance microwave component characterization and testing. Plus, the PNA family shares a common software platform making it easy to customize for just the right level of performance to meet specific budget and measurement needs. Software options can also be added later to meet future test requirements. The PNA is also compatible with Agilent’s Physical Layer Test System, materials measurement software and multiport test sets.
