[SatNews] Jampro Antennas, Inc. will show its range of advanced antennas, RF components, and a full series of rigid line and accessories at IBC2010 in Hall 8, Stand B96. Highlights will include two of Jampro’s most versatile and economical products; the award-winning UHF RWED-516-U, a compact TV mask/filter combiner, and the JA/MS-BB UHF broadband slot antenna.

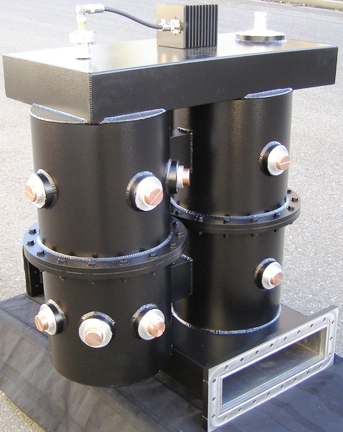

The versatile UHF RWED-516-U compact TV mask/filter combiner with four-port directionality can be used as either a mask filter or constant impedance-combining module for high power UHF TV broadcasts. The unit has a cross-coupled design to accommodate adjacent channels, meets stringent filtering standards, and provides constant impedance performance for adjacent and channel separations greater than 15. The RWED-516-U provides the high isolation of traditional constant impedance technology and achieves elliptical response without external coupling mechanisms. Large cavities handle high power with low insertion loss; its filters are temperature compensated for closely spaced applications. The RWED-516-U is expandable to accommodate future channels, unrestricted by the bandwidth limitations of standard hybrid technology designs.

Jampro will also feature its JA/MS-BB Broadband UHF Slot antenna, an economical alternative to buying, installing and maintaining multiple antennas. The most recent addition to the Company’s Prostar™ line, the JA/MS-BB provides a single, compact solution that conserves tower space and minimizes wind loading. Especially designed for multi-channel/combined channel operations in analog-analog, analog-digital or digital-digital TV applications, the JA/MS-BB arrives factory tuned with a ready-to-install, elegant and streamlined design. Broadcasters can choose from a wide selection of standard and custom transmission patterns. It can be configured for horizontal, circular or elliptical polarization, beam tilt and null fill are available; the JA/MS-BB handles power ranging from 2 to 10 kW. Input impedance is 50 ohm and VSWR of 1.1:1 or better can be achieved over sub-bands ranging from 470-530 to 835-890 MHz. The JA/MS-BB offers thoroughly proven high performance for analog or DTV broadcast applications from a ruggedly built “single solution”.
