These appliances switch multiple inputs to one output (mux), or route a signal to different destinations (demux). They fit in a very small form factor and come off the shelf with
many standard features, such as SNMP protocol, web interface, redundant power

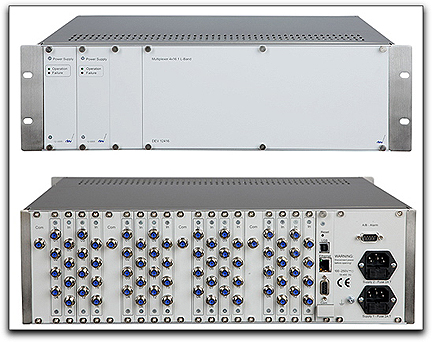

supplies, and more. Models DEV 1248 (4*8:1), DEV 12416 (4*16:1) und DEV 12232 (2*32:1) are available for 50 and 75 ohms systems. They can be monitored and controlled via the user-friendly web interface and include protocols like SNMP, Sandar Prosan, and Leitch, using the interfaces Ethernet/RJ45, RS232 (RS422/RS485 as an option)/D-Sub-9. Energy monitoring alarms if one or both power supplies fail to deliver secondary power. The mux/demuxes are housed in a form factor of 3RU rack units only. If the user needs a single mux/demux, DEV Systemtechnik offers a 1RU series with 16 ports or less (DEV 1018, DEV 10116, DEV 1218, DEV 12116, DEV 1258, and DEV 12516). Additionally, DEV features a family of mux/demuxes with 24, 32, 48, or 64 ports in 3RU form factor (DEV 101xx and DEV 121xx).
DEV Mux + Demux Models Make Market Moves
DEV Systemtechnik assists operators of satellite ground stations and cable head end stations to monitor permanently a multitude of RF signals, thanks to the Company’s new family of L-band multiplexer/demultiplexers.
These appliances switch multiple inputs to one output (mux), or route a signal to different destinations (demux). They fit in a very small form factor and come off the shelf with
many standard features, such as SNMP protocol, web interface, redundant power
supplies, and more. Models DEV 1248 (4*8:1), DEV 12416 (4*16:1) und DEV 12232 (2*32:1) are available for 50 and 75 ohms systems. They can be monitored and controlled via the user-friendly web interface and include protocols like SNMP, Sandar Prosan, and Leitch, using the interfaces Ethernet/RJ45, RS232 (RS422/RS485 as an option)/D-Sub-9. Energy monitoring alarms if one or both power supplies fail to deliver secondary power. The mux/demuxes are housed in a form factor of 3RU rack units only. If the user needs a single mux/demux, DEV Systemtechnik offers a 1RU series with 16 ports or less (DEV 1018, DEV 10116, DEV 1218, DEV 12116, DEV 1258, and DEV 12516). Additionally, DEV features a family of mux/demuxes with 24, 32, 48, or 64 ports in 3RU form factor (DEV 101xx and DEV 121xx).
