Aitech provided a complete avionics computer system to Intuitive Machines for the IM-1 Mission that successfully landed on the Moon February 22, 2024. The space-rated system developed by Aitech includes its SP0-S space-rated single board computer, S740 radiation tolerant communications PMC board, and S730, a rugged space-rated SpaceWire card.
Intuitive Machines is part of NASA’s Commercial Lunar Payload Services (CLPS) initiative, which is a key part of NASA’s Artemis lunar exploration efforts. IM-1 is one of the missions NASA has selected to take its scientific instruments to the moon over the next few years to help lay the foundation for human missions and a sustainable human presence on the lunar surface.
CLPS mission objectives include demonstrating precision landing, observing how rocket plumes and space weather interact with the lunar surface, as well as testing certain communication and navigation node capabilities for future autonomous navigation technologies.

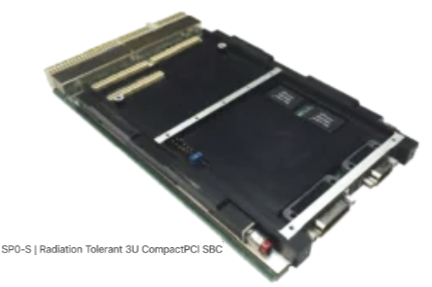

Aitech’s space-rated SP0-S is a radiation-tolerant 3U CompactPCI SBC developed to handle high-performance processing and enhanced memory storage in orbit. Aitech’s SP0-S architecture supports up to seven additional cards on the CompactPCI backplane providing clock, arbitration, and interrupt servicing, including additional SP0-S SBCs as peripheral processors, as seen in the Nova-C lunar lander.
Aitech provided the complete conduction-cooled hardware for the Nova-C avionics system for use as both a payload controller and image data processor. Intuitive Machines used this dual SP0-S setup to respectively run both VxWorks RTOS and Linux to execute its time-critical software while processing video data streams down to a NAND flash storage module. This dual SBC system leverages RS-422, SpaceWire cameras, and NAND flash storage in an all-in-one, space-rated, avionics system.

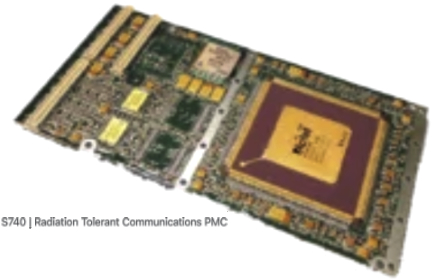

The S740 radiation tolerant communications PMC is designed with 16 input and 16 output differential channels of RS-422 and uses the onboard FPGA logic to interface to the external spacecraft sensors and devices. To reduce bottlenecks, the S740 is designed with a protected onboard PCI Bus DMA controller for input and output data packet buffering.

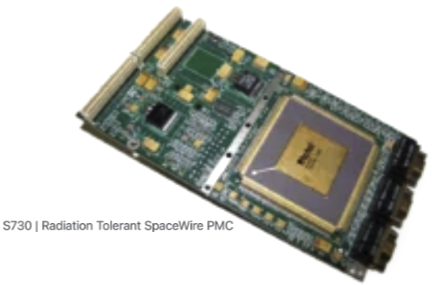

The radiation-tolerant S730 SpaceWire PMC Card offers three SpaceWire ports with initiator and target capability and has provisions to add on RS422 serial interfaces and 32 GPIOs for complete system communication.
Ralph Grundler, Space Director of Aitech, said, “We aim to support the most demanding space applications with computing and connectivity electronics systems, while continuously anticipating and exceeding the needs and expectations of the space industry for not only Lunar but also LEO, GEO and Deep Space applications. The Nova-C class lunar lander’s system is an example of how Aitech is developing rugged space system solutions capable of providing reliable performance for the most unforgiving environments.”
