This Grandmaster Protects Critical Infrastructure Networks With Flexibility, Security And Scalability


Copyright All rights reserved by Microchip Technology

Microchip Technology Inc.’s (Nasdaq: MCHP) TimeProvider® 4100 Release 2.3 precision timing grandmaster meets the requirement when networks require redundant backup systems when Global Navigation Satellite System (GNSS) signals are unavailable.

This is critical to infrastructure communication infrastructure communication networks – 5G mobile, utilities, cable, transportation, defense and data centers – to acquire and maintain signals for precise timing from Global Positioning System (GPS) or other worldwide satellite constellations. This is the industry’s most recent IEEE® 1588 v2.1 2019 security standard for protection of timing systems, while also providing an increased level of deployment flexibility and scalability. These networks require redundant backup systems when Global Navigation Satellite System (GNSS) signals are unavailable.

Best-of-Breed Grandmaster Clock

Microchip’s TimeProvider 4100 Release 2.3 grandmaster introduces an ultra-resilient multi-client Precision Time Protocol (PTP) optional license, providing customers with up to three connections to other grandmasters in the operator’s network. This capability can be used as a backup for time and phase input. This new option implements the latest IEEE 1588 2.1 standard majority vote mechanism to select the best input for Assisted Partial Timing Support (APTS) backup protection.

Additionally, TimeProvider 4100 Release 2.3 provides more deployment flexibility with support for two PTP server profiles on every Ethernet port. Customers can now optimize usage of these ports without additional hardware investments. TimeProvider Release 2.3 also allows PTP server, PTP client and in-band management to be used on a single port.

TimeProvider 4100 Release 2.3 provides increased security with support for the latest IEEE 1588 2.1 2019 standard. It includes support for architecture guidance security, which uses redundant communication paths between PTP nodes to detect tampering. It also implements out-of-band management mechanisms for detecting tampering, degradation and failures. This timing grandmaster provides complete support for authentication, authorization and accounting (AAA) as well as two-factor authentication. As a software update, TimeProvider 4100 Release 2.3 is available for new and already-deployed systems. Other features include:

  • PTP enhancements including increased capacity of up to 1,000 network clients, which is required for certain applications such as data centers.

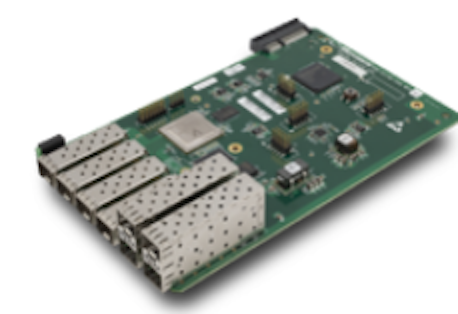

  • Enhancements to the E1/T1 expansion module with new signals such as composite clock and JCC (Japan CC format), both inputs and outputs, for increased integration with legacy systems.

TimeProvider 4100 Release 2.3 can be managed by Microchip’s TimePictra® Synchronization Management System for full Fault, Configuration, Accounting, Performance and Security (FCAPS).
