DARPA has selected Aurora Flight Sciences to build a full-scale X-plane to demonstrate the viability of using active flow control (AFC) actuators for primary flight control — this award is Phase 3 of the Control of Revolutionary Aircraft with Novel Effectors (CRANE) program.
In December 1903, the Wright brothers flew the world’s first fully controllable aircraft, which used wing warping to successfully achieve flight. Virtually every aircraft since then has used a system of movable, external control surfaces for flight control.

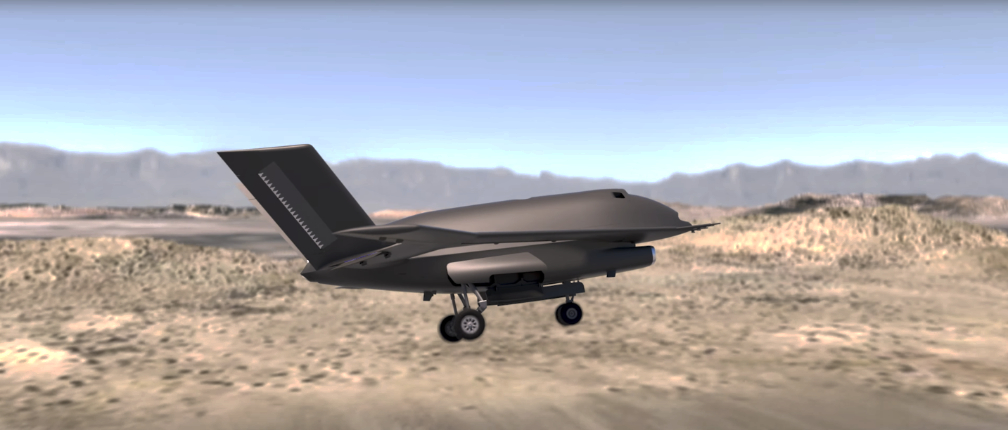

The X-65 breaks this century-old design paradigm for flight control by using jets of air from a pressurized source to shape the flow of air over the aircraft surface, with AFC effectors on several surfaces to control the plane’s roll, pitch, and yaw. Eliminating external moving parts is expected to reduce weight and complexity and to improve performance.

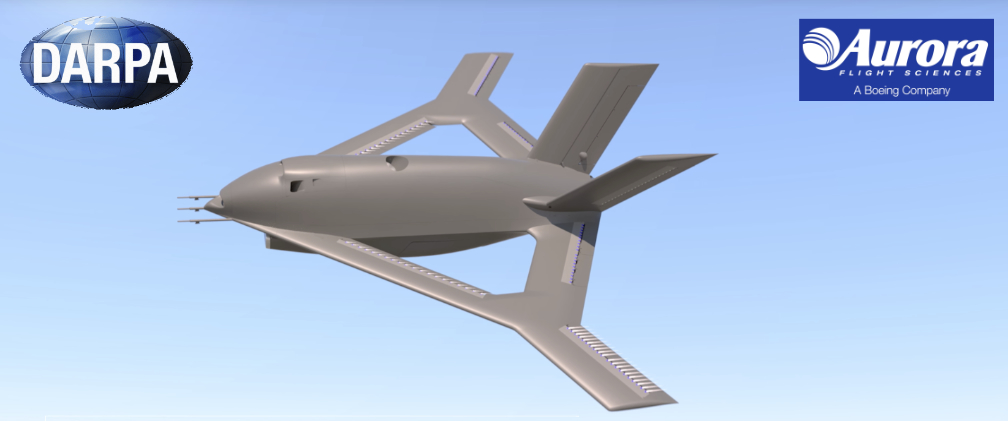

“The X-65 is a technology demonstrator, and it’s distinctive, diamond-like wing shape is designed to help us maximize what we can learn about AFC in full-scale, real-world tests,” said Dr. Richard Wlezien, DARPA’s program manager for CRANE. “The X-65 conventional surfaces are like training wheels to help us understand how AFC can be used in place of traditional flaps and rudders. We’ll have sensors in place to monitor how the AFC effectors’ performance compares with traditional control mechanisms, and these data will help us better understand how AFC could revolutionize both military and commercial craft in the future.”
The X-65 will be built with two sets of control actuators – traditional flaps and rudders as well as AFC effectors embedded across all the lifting surfaces. This will both minimize risk and maximize the program’s insight into control effectiveness. The plane’s performance with traditional control surfaces will serve as a baseline; successive tests will selectively lock down moving surfaces, using AFC effectors instead.

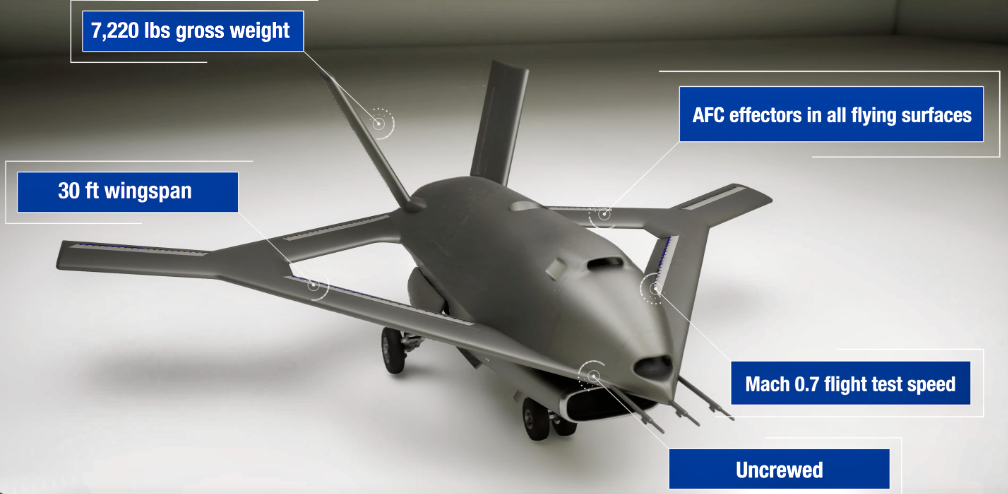

The 7,000+ pound, unmanned X-65 will have a 30-foot wingspan and be capable of speeds up to Mach 0.7. Its weight, size, and speed – similar to a military trainer aircraft – make the flight-test results immediately relevant to real world aircraft design.
Aurora Flight Sciences has already started fabricating the X-plane; the X-65 is scheduled to be rolled out in early 2025 with the first flight planned for summer of the same year.
Wlezien added, “We’re building the X-65 as a modular platform – wing sections and the AFC effectors can easily be swapped out – to allow it to live on as a test asset for DARPA and other agencies long after CRANE concludes. It’s thrilling to be able to say, ‘we’re building an AFC X-plane. I came to DARPA in 1999 to work on a program called Micro Adaptive Flow Control, which help pioneer the foundational understanding of fluid dynamics that eventually led to CRANE. I left DARPA in 2003 after managing MAFC, and it’s the chance of a lifetime to come back and help see that early work come to fruition in a full-scale physical aircraft. Aerospace engineers live to see their efforts take flight.”
