AVX Corporation has unveiled their portfolio of high-performance, high-efficiency patch antennas that are optimized to satisfy connectivity and miniaturization requirements in wireless applications.

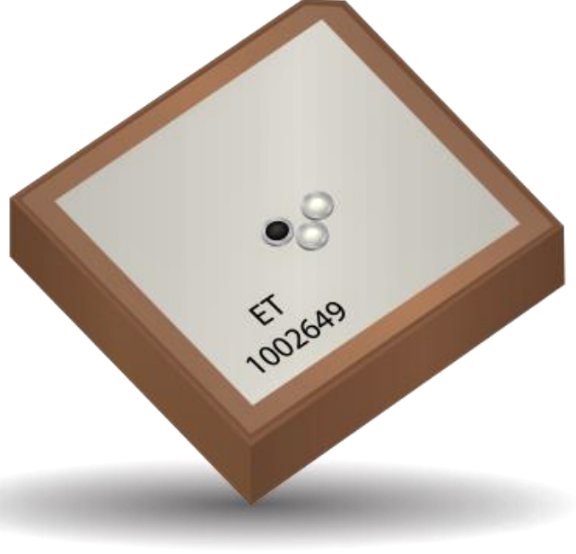

Included in this portfolio are five new series of embedded, on-board, patch antennas: the Wi-Fi/BT/Zigbee Ceramic Patch 2.4GHz Antennas (1003468), the GPS/GLONASS/Beidou/Galileo Patch Antennas (1004322), the GPS/GLONASS/Beidou/Galileo Dual-Feed Patch Antennas (1002649), the GPS/GLONASS Patch Antennas with Cable (1004627), and the GPS Ceramic Patch Antennas with Low-Noise Amplifier (LNA) (1004138).
Ethertronics’ embedded on-board patch antennas have small, low-profile form factors and leverage the company’s patented isolated magnetic dipole (IMD) technology to achieve both reduced ground plane and keep-out area size requirements for greater design flexibility and higher efficiency, gain, isolation, and directivity characteristics than competing solutions from 1.5–2.4GHz for reliable connectivity with better return loss and minimal interference.
The range is also RoHS compliant and available with multiple feed points, optional cable connections, and adhesive and through-hole solder pin mounting options. Ideal applications include IoT devices, M2M communications, wireless electronics spanning wearables, IoT devices, gateways, telematics and more.
This variety of standard antenna offerings helps engineers reduce design costs and hasten time-to-market by eliminating the additional design fees and extended cycle times associated with custom solutions. In addition, each patch antenna series in the range features independent tuning capabilities for application-specific performance optimization, which is especially beneficial for mobile device designs including smartphones, headsets, tablets, and media players.
Each of the Ethertronics patch antennas in all five series measures a maximum of 25.0mm (±0.2mm) in length, 25.0mm (±0.2mm) in width, and 6.8mm (±0.7mm) in height, weighs between 4.8g and 14.3g, and supports a range of both high-band and ultra-high-band frequencies extending from 1.559–2.485GHz. Typical performance characteristics for each patch antenna series varies depending on its PCB ground plane dimensions (e.g., 50mm x 50mm or 70mm x 70mm) or free-space placement, but can include RHCP polarization, 50Ω unbalanced feed-point impedance, peak gain ranging from 3.0dBi at 1.602GHz to 5.5dBi from 1.575–1.610GHz, average efficiency spanning 51% from 1.559–1.591GHz to 74% from 2.400–2.485GHz, and VSWR match extending from <2:1 for 2.400–2.485GHz frequencies to <1:2.2 for 1.593–1.610GHz frequencies.
Executive Comment
“Ethertronics’ range of embedded on-board patch antennas provides OEMs with exceptional performance, efficiency, and reliability in small, low-profile form factors designed to satisfy widespread, cross-market demands for size and weight savings,” said Alexander Hall, field applications engineer, AVX. “Thanks to our patented, multilayer IMD technology, Ethertronics’ patch antennas consistently outperform competing solutions, offering improved design flexibility by way of reduced ground plane and keep-out area size requirements and reliable connectivity with higher efficiency, gain, isolation, and directivity characteristics, better return loss, and minimal interference from 1.5–2.4GHz.”
