The Teledyne TDGB010 cascadable broadband InGaPHBT MMIC amplifier is a high-performance solution for general-purpose, high-reliability RF and microwave amplification needs.

Teledyne e2v HiRel, part of the Teledyne Defense Electronics Group, has announced a new family of 10 GHz RF Gain Blocks using space-qualified InGaP amplifier technology.

Spearheaded by an 18.4 dB gain model, this new group of Gain Blocks, TDGB010, is based on an indium gallium phosphide (InGaP) technology suitable for both space and, optionally, defense applications. It achieves this through its ceramic packaging and space qualification.

Teledyne e2v HiRel customers now have a standard amplifier solution that stretches from L-band through X-band. Since a standardized amplifier solution reduces the number of new qualified components that flight programs typically require, it greatly simplifies the procurement process for components. The X-band Gain Blocks are available in configurations of 13.6, 16.5 and 18.4 dB which enable RF design engineers to more precisely configure the signal gain.

The TDGB010 50-ohm Gain Block incorporates proprietary Monolithic Microwave Integrated Circuit (MMIC) design techniques and also utilizes a mature and reliable heterojunction bipolar transistor (HBT) InGaP process. With space-flight heritage, the process has shown to be radiation tolerant to 100 krad, making it an ideal choice for satellites and other high-altitude applications. For more information, please visit the RF Solutions webpage on the Teledyne e2v HiRel website.

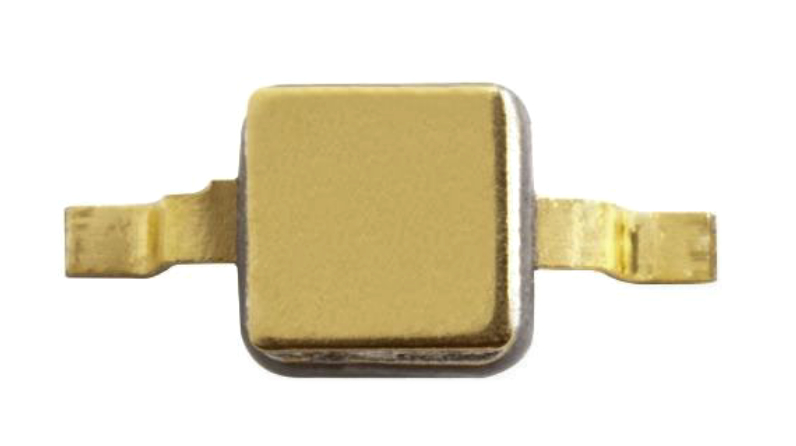

Teledyne e2v’s Hi-Rel X-band Gain Blocks family is available now and is packaged in a 2-lead, ultra-small, hermetic, gullwing package. Both the wafer process technology and the package have space flight heritage.
