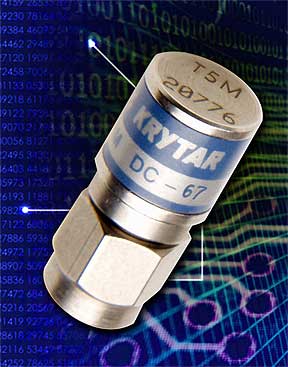

...ultra-broadband frequency range from DC to 67 GHz. KRYTAR’s new coaxial termination, Model T5M, features a passivated stainless steel body with a center contact which is gold-plated and heat-treated beryllium-copper (BeCu) material. The new coaxial termination offers a maximum VSWR of 1.2 (DC-40 GHz) and 1.43 (40-67 GHz). The T5M termination has a 2.4 mm male connector and measures only 0.84-inches long x 0.36-inches in diameter.

KRYTAR’s coaxial terminations are useful when terminating unused ports, on isolated ports of hybrids and combiners, and to protect devices from signal reflections. KRYTAR’s terminations are designed to be used in a wide range of ultra-broadband microwave components and test equipment for both military and commercial applications. The new Model T5M joins a wide selection of extremely rugged 50 Ohm mechanical coaxial terminations. KRYTAR designs offer reliability, long wear and excellent repeatability. Many KRYTAR coaxial terminations have been used to make thousands of measurements and are still within their original performance specifications.
